LM4580 DUAL LOW NOISE OPERATIONAL AMPLIFIERS
1、General Description The LM4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier,industrial measurement tools and applicationswhere gain and phase matched channels are mandatory. The IC features internal frequency compensation, lownoise, low distortion, high gain and high bandwidth.The LM4580 can operate under dual power supply voltage up to ±18V or single power supply up to 36V. The LM4580 is available in DIP-8, SOIC-8 and TSSOP-8 packages. | 2、Features
3、Applications
|

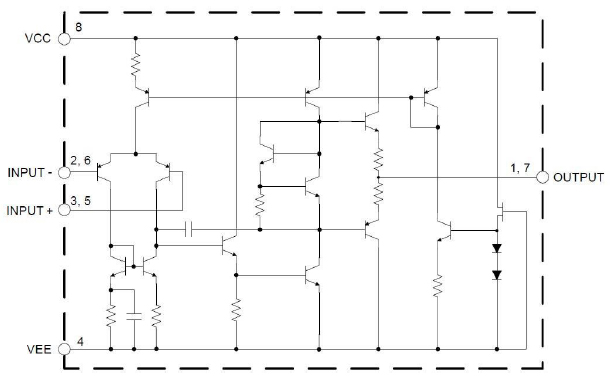

| 4、Functional Block Diagram | 5、Pin Configuration |
 |  |
产品型号 | 供货状态 | 通道数 | 工作电压范围 (V) | 增益带宽积 | 静态电流/通道 | 失调电压 （mV） | 失调电压温漂 （μV/°C） | 输入偏置电流 （nA） | 封装 |
| LM4580 | 量产 | 2 | 4.0-36 | 15MHz | 3.5mA | 3 | 5 | 500 | SOP8/DIP 8/TSSOP8 |
